Display screen: 12.2-inch 1920x1200 pixel capacitive screen, supporting multi touch.
Display area: 362.77X164.23 (mm)
Indicator lights: power light, information light, off hook light
Bracket angle adjustment: 0-120 degrees adjustable
Camera angle adjustment: -30 degrees (down) to 20 degrees (up)
PSTN interface: 2 RJ11 interfaces
Network interface: 2 RJ45 10/100/1000M network ports
Wireless Wi Fi: 802.11a/b/g/n, 802.11ac (2.4 and 5 GHz)
USB 2.0 interface: 1 Type A USB port (connected to a camera), 1 Type C port
USB 3.0 interface: 1 A-type USB port (main)
SD card interface: 1, maximum support 128GB
Ear microphone interface: 3.5mm
Length * Width * Height: 290.88mm * 72.9mm * 72.3mm
Weight: 1781g
Operating System: Android 10.0
PoE power supply: Supports IEEE802.3at
The power adapter:
Input voltage: AC100V-240V~, 50/60Hz 0.5A
Output voltage: DC12.0V, 1.5A
Working environment temperature: 0 ℃ -40 ℃
Home / Products /
Integrated Communication Terminal Series /
Integrated communication terminal A9698

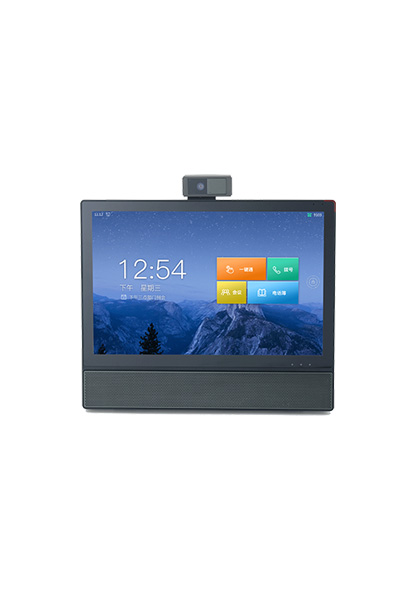

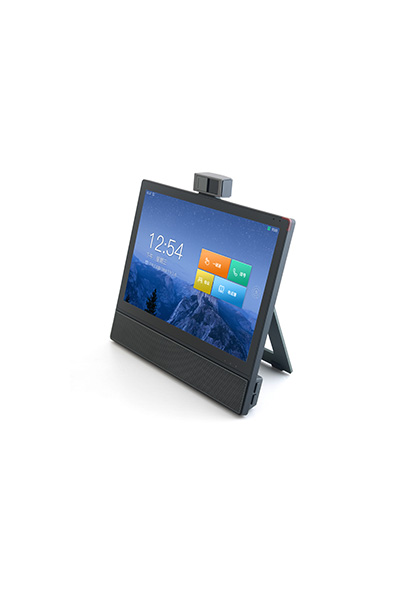

Integrated communication terminal A9698
The A9698 integrated communication terminal is a high-tech intelligent multimedia integrated communication terminal based on the Android operating system, equipped with a 12.2-inch touch screen, and supports analog PSTN and IP lines. It integrates functions such as video conferencing, telephone conferencing, company directory, recording management, video calling, and industry application software. It can also install mainstream video conferencing apps on the market and connect to third-party conference systems to hold or participate in meetings.
