Display screen: 12.2-inch 1920x1200 pixel capacitive screen, supporting multi touch.
Display area: 262.77X164.23 (mm)
Indicator lights: power light, information light, off hook light
Bracket angle adjustment: 0-120 degrees adjustable
Camera angle adjustment: -30 degrees (down) to 20 degrees (up)
PSTN interface: 2 RJ11 interfaces
Network interface: 2 RJ45 10/100/1000M network ports
Wireless Wi Fi: 802.11a/b/g/n, 802.11ac (2.4 and 5 GHz)
USB 2.0 interface: 1 Type A USB port (connected to a camera), 1 Type C port
USB 3.0 interface: 1 A-type USB port (main)
SD card interface: 1, maximum support 128GB
Ear microphone interface: 3.5mm
Length * Width * Height (including handle): 354.4mm * 72.9mm * 72.3mm
Weight (including handle): 2061g
Operating System: Android 10.0
PoE power supply: Supports IEEE802.3at
The power adapter:
Input voltage: AC100V-240V, 50/60Hz 0.5A
Output voltage: DC12.0V, 1.5A
Working environment temperature: 0 ℃ -40 ℃
Home / Products /
Integrated Communication Terminal Series /
Integrated communication terminal A9698H

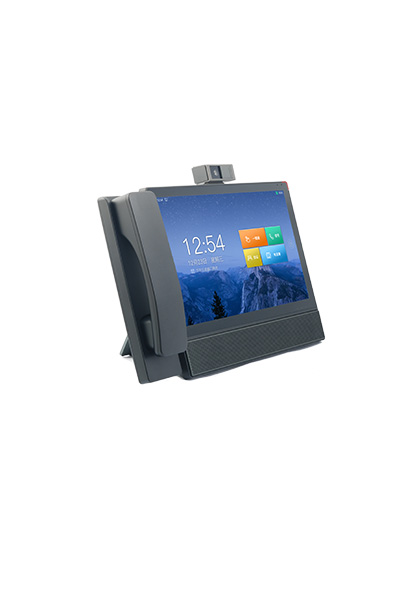

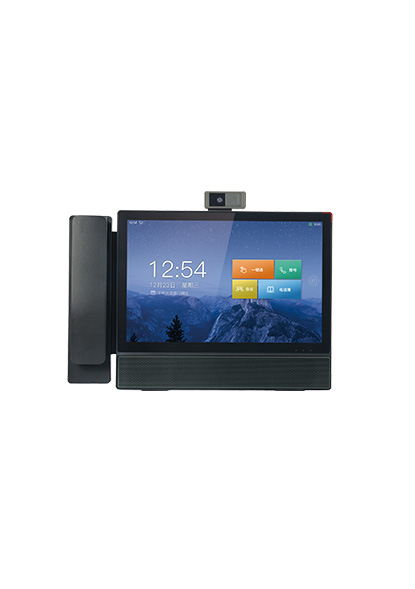

Integrated communication terminal A9698H
The integrated communication terminal A9698H is equipped with a wired controller PZ31, which can be used to complete functions such as making and answering calls;
The local video conference function allows for the holding of 4-party video conferences at any time. Audio access can also be provided during video conferences, supporting 20 party audio and video hybrid conferences; High definition video calling, using ultra high definition cameras to capture images and display them in high definition. Supports HDMI output; Intelligent hierarchical architecture communication directory, unit architecture organization is clear at a glance; Multi functional one button communication expansion board, convenient and easy;
One click communication with contacts, like a dispatch desk, can be easily controlled and dialed out with just one click;
Can display the call status of frequently used contacts: idle/ringing/in call;
The device can be set to record for no less than 1000 hours and can be expanded with an SD card; Humanized no disturbance function, automatically restored at the designated time;
Intelligent external dialing, suitable for industries such as power, military lines, and railways, and can set dialing rules for these industries according to actual scenarios; The number of call records can be customized, supporting up to 6000 call records; Supports storing 100000 business cards locally.
The local video conference function allows for the holding of 4-party video conferences at any time. Audio access can also be provided during video conferences, supporting 20 party audio and video hybrid conferences; High definition video calling, using ultra high definition cameras to capture images and display them in high definition. Supports HDMI output; Intelligent hierarchical architecture communication directory, unit architecture organization is clear at a glance; Multi functional one button communication expansion board, convenient and easy;
One click communication with contacts, like a dispatch desk, can be easily controlled and dialed out with just one click;
Can display the call status of frequently used contacts: idle/ringing/in call;
The device can be set to record for no less than 1000 hours and can be expanded with an SD card; Humanized no disturbance function, automatically restored at the designated time;
Intelligent external dialing, suitable for industries such as power, military lines, and railways, and can set dialing rules for these industries according to actual scenarios; The number of call records can be customized, supporting up to 6000 call records; Supports storing 100000 business cards locally.
